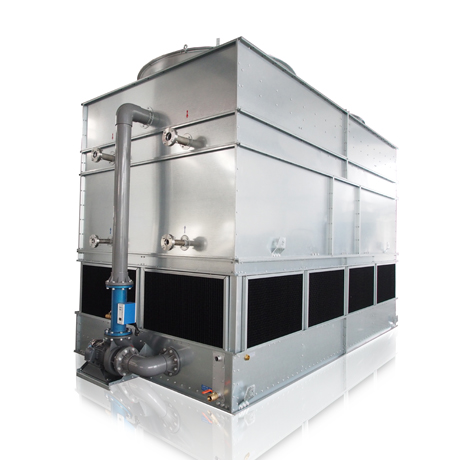

GZM Series Evaporative Condenser

GZM Series Evaporative Condensers are made in the same types of materials as GHM and GTM Series, and of similar working theory as a type of Evaporative Coolers, but designed dedicatedly to cool process fluids of refrigerant, of which the forms are changed during the process.

Quantity:

Configurations

STRUCTURE & CASING

STRUCTURE & CASING

The standard enclosure is made of the latest type of Highly Corrosion-resistant coated steel sheet with a coating composition of Zn+Al(11%)+Mg(3%), and a trace amount of silicon, originally imported from Nippon Steel or Posco. The panels are sheared and folded precisely in whole cold machining process, then densely bolted and sealed for excellent water tightness, with sufficient reinforcing bars for a firmest structure. Condensing coils section is firmly supported by frame made in stainless steel, or H.D.G steel plated entirely after welding.





EVAPORATIVE COOLING COILS

CONDENSING COILS

The condensing coils are of patented design, with low air resistance but high heat transfer efficiency,suitable to work with larger amount of spray water. Standard coils tube made in stainless steel 304/316, or red copper and titanium ally on options.  Different wall thickness can be met on request. Each coil is tested under continuous nitrogen gas pressure of 30 bar for 24 hours,ensure no leaking or weak point.







DIRECT-DRIVE AXIAL FANS


DIRECT-DRIVE AXIAL FANS

The standard closed loop series adopt direct-drive axial fans, fitted with resin or al-alloy airfoil blades perfectly balanced and coupled to a weather proof TEFC three-phases electric motor. The fan casing is a galvanized steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise level within acceptable limits.





SPRAY PUMPSPRAY PUMP

Standard spray pumps are of GZ horizontal centrifugal series from GSD brand, with motor of brand TECO, specially designed for evaporative cooling equipments, of generally large flow rate but low pumping head. The selected pumps are of dynamic-static balance, with shaft as an extended section from the motor, for most reliable concentricity. With first grade bearings, the pumps runat minimized vibration and low noise. Mechanicseals avoids abrasion to shaft, no leakage in long term service life. Overload protected on any point of the performance curve, not exceeding the rated power during the whole working period. Enclosure materials and installation arrangement can be optional and modified to suit different projects requirements.





DRIFT ELIMINATOR


DRIFT ELIMINATOR

Cellular Drift Eliminators are specifically designed to achieve maximum drift removal. With significantly lower pressure drop. The modules are constructed of a series of sinusoidal-shaped, corrugated PVC sheets that are mechanically assembled to mating sinusoidal structural waves, forming closed cells. These cells force the drift droplets being carried in the leaving airstream to make three distinct changes in direction. When the air is forced to change direction, the inertia of the water droplets keeps them moving in a straight line, causing them to impact the wall of the drift eliminator and drain back into the wet section of the tower.




AIR INLET LOUVERS


AIR INLELOUVERS

Cellular air Inlet louvers with advanced design improve air flow into the cooling tower, keep out debris, eliminate water splash-out, which otherwise can cause icing, near-site water damage,and unnecessary water loss. The deign restrict the amount of sunlight into the cooling tower to impede algae growth, reduce noise from the tower, and improve the tower's appearance.





SPRAY PIPE

SPRAY PIPE

Spray Pipes made in U-PVC from FPC, of high mechanical strength and long service life, holding pressure1.0 Mpa, accessible to inspect and maintain from outside of the tower, convenient to check with when running fully, completed with buttonholes for quick and tight installations of spray nozzles.





FLOAT VALVE

FLOAT VALVE

Heavy duty floating valve, made in stainless steel, floating ball in engineering plastic or stainless steel, with long service life. Water level ad justable.




ANTI-EDDY FILTER


ANTI-EDDY FILTER

Effectively filting the sundries, with anti-eddy arrangement, preventing air bubbles sucked into the pumps, punched in the same material as the enclosure, highly corrossion resistant.






FASTENERS


FASTENERS

Fastners of leading brands, standard materials in steel dacromet treated, stainless steel on options. Intensity of fastners is higher than average.








Data Sheet

Model No. Nominal
Tons
Fan Spray Pump Gas Inlet Liquid
Outlet
Overall
Dimensions(mm)
Weight
Power
 (kW)
Air Volumn (m3/s) Power
 (kW)
Flow Rate   (T/h) L W H

Net

(kg)

Operation    (kg)
GZM-100 100 1.1 3.9 0.75 16 DN40 DN32 1130 770 2800 500 970
GZM-115 115 1.5 5 0.75 16 DN40 DN32 1150 890 3025 600 1070
GZM-130 130 1.5 5 0.75 16 DN40 DN32 1150 890 3025 620 1100
GZM-145 145 1.5 5.6 0.75 16 DN40 DN32 1160 1050 3075 800 1280
GZM-160 160 1.5 5.6 0.75 16 DN40 DN32 1160 1050 3075 820 1300
GZM-180 180 2.2 6.9 0.75 16 DN80 DN80 1710 1125 3210 1150 1630
GZM-200 200 2.2 6.9 0.75 16 DN80 DN80 1710 1125 3210 1170 1650
GZM-220 220 3 7.5 0.75 16 DN80 DN80 1835 1220 3210 1250 1950
GZM-240 240 3 7.5 0.75 16 DN80 DN80 1835 1220 3210 1270 1970
GZM-280 280 3 8.9 0.75 16 DN80 DN80 1680 1220 3400 1200 1900
GZM-300 300 3 8.9 0.75 16 DN80 DN80 1680 1220 3400 1220 1920
GZM-320 320 4 11.1 0.75 16 DN80 DN80 1880 1250 3400 1400 2100
GZM-340 340 4 11.1 0.75 16 DN80 DN80 1880 1250 3400 1420 2120
GZM-360 360 4 12.5 0.75 22 DN80 DN80 2000 1350 3400 1650 2350
GZM-380 380 4 12.5 0.75 22 DN80 DN80 2000 1350 3400 1670 2370
GZM-400 400 4 12.5 0.75 22 DN80 DN80 2000 1350 3400 1690 2390
GZM-430 430 4 18.1 1.5 45 DN100 DN100 1830 2410 4300 2490 3830
GZM-475 475 4 18.1 1.5 45 DN100 DN100 1830 2410 4300 2700 4050
GZM-495 495 5.5 19.7 1.5 45 DN100 DN100 1830 2410 4300 2710 4060
GZM-550 550 4 17.6 2.2 75 DN100 DN100 1930 3010 4350 3310 4980
GZM-595 55 5.5 21.7 2.2 75 DN100 DN100 1930 3010 4350 3320 4990
GZM-670 670 5.5 21.7 2.2 75 DN100 DN100 1930 3010 4350 3700 5380
GZM-700 700 5.5 21.7 2.2 75 DN100 DN100 1930 3010 4950 3800 5890
GZM-735 735 7.5 24.2 2.2 75 DN100 DN100 1930 3010 4950 3810 5900
GZM-780 780 5.5 22.2 2.2 75 DN100 DN100 1985 3210 4990 4040 6200
GZM-870 870 7.5 27.8 2.2 75 DN100 DN100 1985 3210 4990 4050 6210
GZM-940 940 11 34.7 2.2 75 DN100 DN100 1985 3210 4990 4060 6220
GZM-960 960 4.0×2 18.1×2 2.2 114 DN100×2 DN100 3575 2410 4300 4920 7590
GZM-1000 1000 5.5×2 19.7×2 2.2 114 DN100×2 DN100 3575 2410 4300 4940 7610
GZM-1050 1050 7.5×2 21.9×2 2.2 114 DN100×2 DN100 3575 2410 4300 4960 7630
GZM-1165 1165 4.0×2 17.6×2 3.7 140 DN100×2 DN100 3775 2710 4950 6070 10210
GZM-1285 1285 5.5×2 21.7×2 3.7 140 DN100×2 DN100 3775 2710 4950 6090 10230
GZM-1335 1335 7.5×2 24.2×2 3.7 140 DN100×2 DN100 3775 2710 4950 6110 10250
GZM-1420 1420 5.5×2 21.7×2 3.7 140 DN100×2 DN100 3775 3010 4950 7050 11250
GZM-1490 1490 7.5×2 24.2×2 3.7 140 DN100×2 DN100 3775 3010 4950 7070 11270

NOTE

Nominal Tons are based upon condensing temp. 37°C/ 98.6°F, WBT 26°C/ 78.8°F.


GZM General Outline




Working Thoery


GZM Working Theory

WORKING THOERY

GZM Condenser utilizes the evaporation of partial spray water, to absorb the heat from the flowing gaseous refrigerant of high temperature inside the condensing coils, and cool the refrigerant from gaseous state to liquid form. In a complete evaporative cooling system, compressor discharges high pressure evaporated refrigerant in gas form, which passes through the heat exchange coils of evaporative condenser, and exchanges heat with spray water outside the heat exchange coils. After entering heat exchange coils from upper inlet, gaseous refrigerant is gradually cooled to be liquid form from top down. The strong wind of fans makes spray water fully cover the heat exchange surface of the coils evenly, and this tremendously increases the heat exchange efficiency. Partial calefactive spray water get vaporized and takes away massive heat with the air flow.


Features

PRODUCTS ADVANTAGES

Compatible with numerous process fluids

(water, water/glycol, oil, other fluids)


 Capable and flexible in customized solutions

 Factory assembled for maximal installation convenience

 Modular design suits a wide range of heat rejection duties

 Compact design with minimal footprints

 Multiple corrosion resistant options

 Low sound operation options available

 More optimizing options available

 Performance and quality guaranteed

 Super long service life
